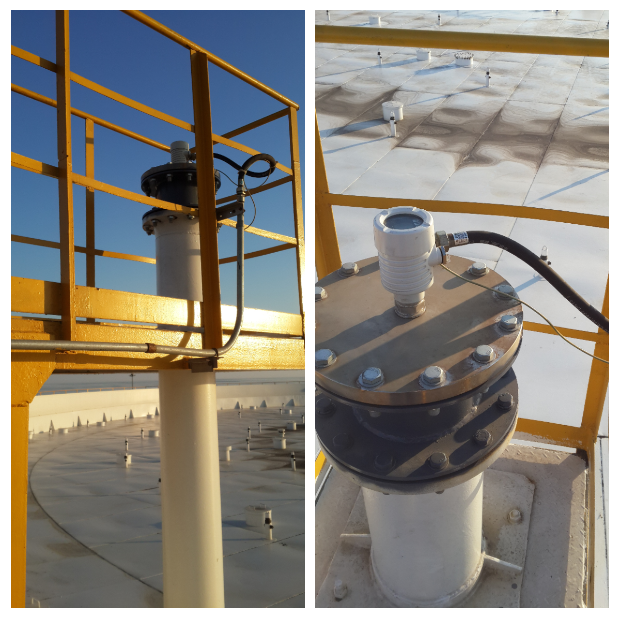

The client requires reliable level measurement to accurately monitor the crude oil storage tank with floating roof. The material of floating roof is metal and will reflect microwave easily so it may cause serious interference during measurement. CONNETECH recommend contact CPR6200 mounted in wave guide tube for the following reasons:

• The wave guide tube can centralize microwave to avoid the reflection from floating roof.
• Considering mounting condition non-contact radar is more suitable for tank with floating roof.

CPR6200

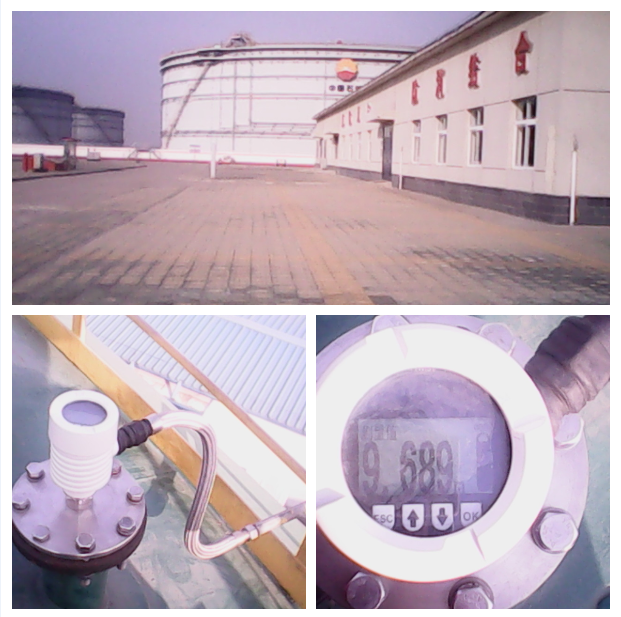

Fire prevention is very important for oil& gas processing company. Usually they keep some fire protection water tanks in case of breaking out of fire. The water level must be monitored all the time. There are some brackets in the tank and may cause interfering echo. CONNETECH recommended contact radar CGR8100 with ex-proof for the following reason:

• The inside bracket may cause interfering echo which lead to inaccurate measuring result for non-contact radar. Contact radar will not be affected by bracket.

CPR6200

Fire prevention is very important for oil& gas processing company. Usually they keep some fire protection water tanks in case of breaking out of fire. The water level must be monitored all the time. There are some brackets in the tank and may cause interfering echo. CONNETECH recommended contact radar CPR6200 with ex-proof for the following reason:

• The inside bracket may cause interfering echo which lead to inaccurate measuring result for non-contact radar. Contact radar will not be affected by bracket.

CPR6200

The client requires reliable level measurement to accurately measure the product oil tank. The instrument will be mounted on the tank roof directly. CONNETECH recommended high frequency pulse radar level sensor CPR6200 for the following reasons:

• Power 26G non-contact radar is more suitable for low dielectric constant media.
• Accuracy is up to ±3mm and match requirement for accuracy.
• 316L SS horn antenna is suitable for slightly aggressiveness liquid.

CPR6200
